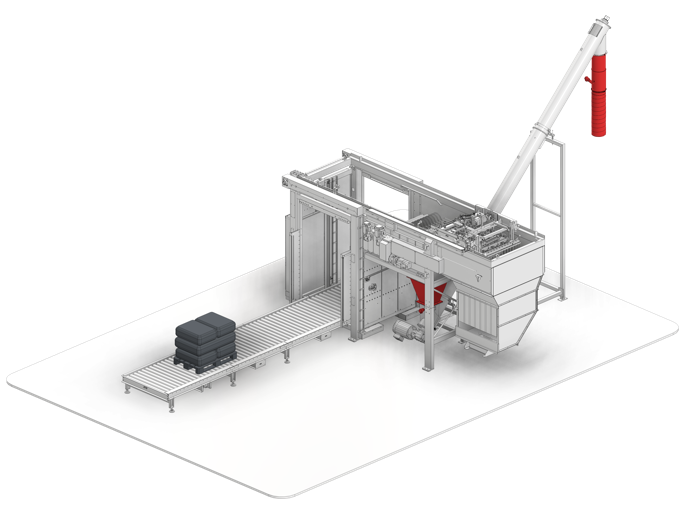

This system allows you to empty 25 kg plastic bags fully automatically. Pallets with a maximum of 11 layers of 5 bags each can be accommodated. The capacity is up to 1,200 bags or 27.5 tonnes per hour (SG 6.0 kN/m³).
Technical data:
Stable frame construction in welded and bolted design
Light barrier system for interior monitoring in accordance with CE requirements
Safety enclosure with the necessary supports and bracing
Including electrical control panel
Electromechanical pallet lifting device
Electropneumatic bag gripper
Rotating cutting blade
Mechanical vibrating device
Width: approx. 2770 mm in operation
Depth: approx. 4320 mm
Height: up to 3340 mm
Weight: 800 kg
Pallet size 1200 x 1200 x 160 mm
Applications:
Plastics industry
Recycling industry
Chemical industry
Pharmaceuticals
Logistics industry
Automotive
Suitable for materials such as
Plastic granulates (PE, PP, PA, TPE, PET, PVC)
PET flakes, regrind, regranulate
