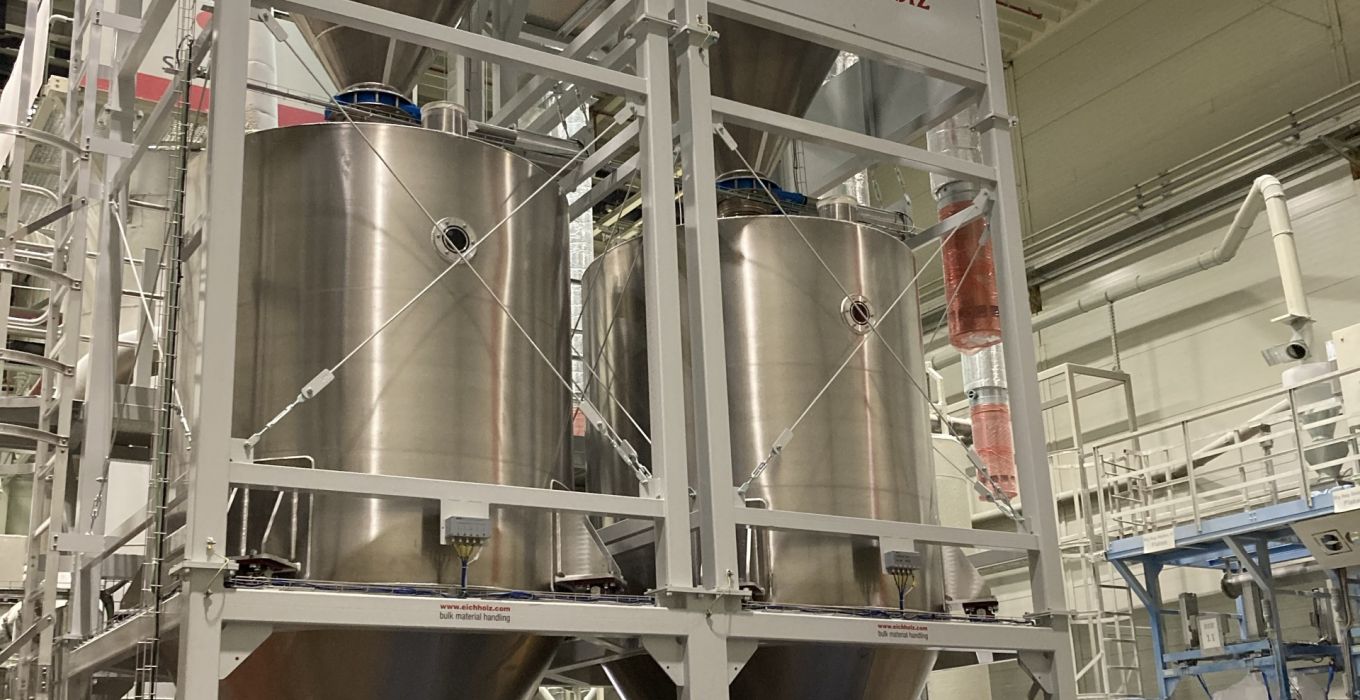

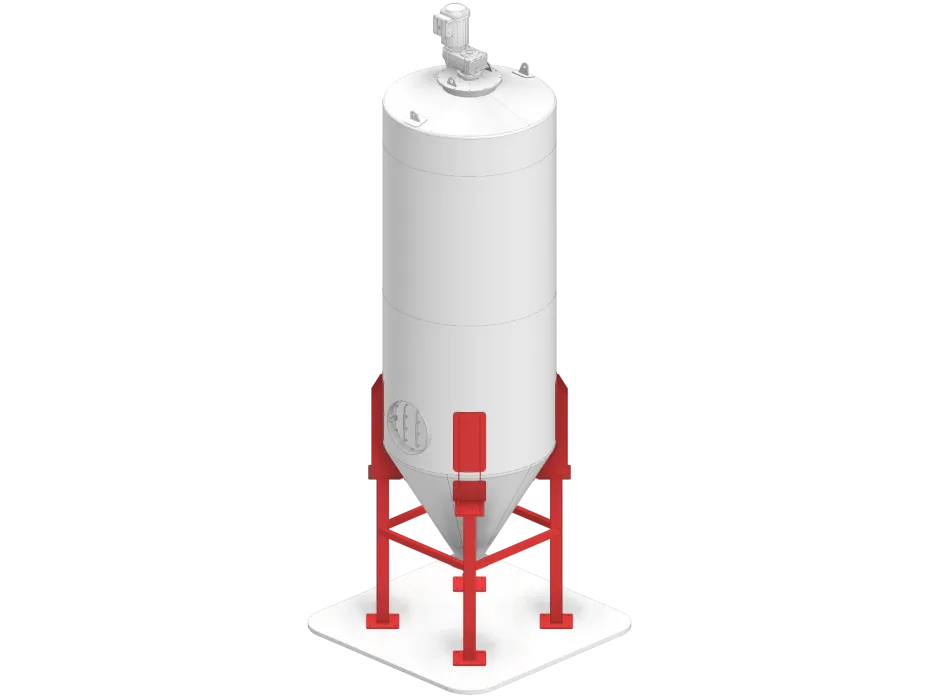

Daily silo
Daily silos from Eichholz Silo & Anlagenbau GmbH serve as production-related storage units and ensure that your material is available exactly where it is needed – in precisely the quantity and quality required by your daily process.
Optional accessories
-
Filling pipe -
Suction box
-
Cable protection pipe
-
Ladder
-
Emergency slide valve
-
Silo door
-
Roof railing
-
Inspection opening
-
Rotary paddle switch
-
Vibrating fork sensor
-
Silo pilot
-
Radar sensor
-
Load cells
-
Pressure relief valve
-
Filter
-
Flashlight & horn
-
Temperature sensor
-
Grounding cable
-
Moisture sensor
-
Bursting discs
-
Vibrating hopper
-
Mixing hopper
-
VibraPads
-
Insulation
-
Platform
-
Sprinkling system
-
Anti-honk cone
-
Axial compensator
-
Manhole
-
Screw conveyor
-
Dry air system
-
Sampling device
-
Pinch valve
-
Feed pan
-
Suction pot
-
Sight glass
Your advantages at a glance
Production reliability on a daily basis
Daily silos store exactly the amount of bulk material required for a defined production period – typically a shift or a day.
Optimal integration into production lines
- Short conveyor distances
- Fast replenishment
- Minimal losses
- Energy-efficient material flows
Ideal for grinding mills, dosing lines, mixing plants, presses, extruders and many other applications.
Accessories
Filling pipe
Pipeline for material conveying.
Suction box
Connection point for vacuum material conveying. Available in various sizes.
Cable protection pipe
Ensures clean and protected cable routing.
Ladder
For inspection of silos, machines, and installations.
Emergency slide valve
Shut-off device for service operations.
Silo door
Access to the silo skirt.
Roof railing
Fall protection for staff.
Inspection opening
Provides access for service operations.
Rotary paddle switch
Mechanical level limit switch with rotating paddle.
Vibrating fork sensor
Vibration level switch with fork-shaped sensor.
Silo pilot
Electromechanical system for level measurement by lowering a sensing weight.
Radar sensor
Non-contact device for continuous level measurement.
Load cells
Non-contact measuring system based on weight detection.
Pressure relief valve
Ensures pressure equalization in case of overpressure or vacuum in the silo.
Filter
For dedusting conveying air.
Flashlight & horn
Provides visual and acoustic status signaling.
Temperature sensor
Temperature measurement in storage systems.
Grounding cable
Dissipates static charge from the product.
Moisture sensor
Measures moisture content in the product.
Bursting discs
Serve as a predetermined breaking point in case of a dust explosion in the silo.
Vibrating hopper
Discharge assistance through vibration.
Mixing hopper
Used for homogenizing products.
VibraPads
Discharge assistance through vibration and air injection.
Insulation
Protection against weather-related influences.
Platform
Provides access to inspection openings for side-mounted installations.
Sprinkling system
Prevents fire load from the building spreading to the silo.
Anti-honk cone
Use of one or more anti-hup cones reduces friction and vibration on the silo body.
Axial compensator
Used in pipelines to compensate for movement, stress, and vibration.
Manhole
Side access in the silo cylinder.
Screw conveyor
Mechanical conveying device for bulk materials.
Dry air system
Maintains a dry air layer in the headspace and prevents moisture ingress from ambient air.
Sampling device
Pinch valve
Shut-off device in the silo filling line. In combination with a pressure sensor, it can stop the filling process if the conveying pressure is too high.
Feed pan
Transfer point between material flow and air flow.
Suction pot
Connection point for vacuum material conveying.
Sight glass
For visual inspection.
