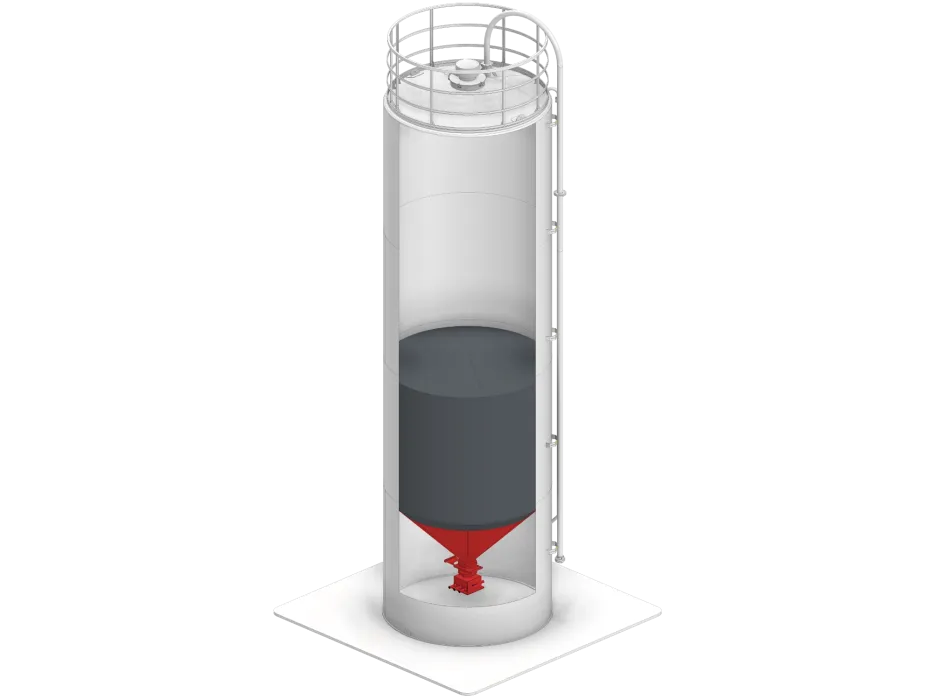

Storage silo

Robust. Safe. Efficient.

Storage silos from Eichholz Silo & Anlagenbau GmbH offer a reliable and economical solution for storing a wide variety of bulk materials. Our silos are designed for maximum durability, high operational safety and optimum material quality. Perfectly adapted to the requirements of your industry.

Material:

Aluminium: EN AW-5754 (AlMg3)
Stainless steel: 1.4301/1.4404

Technical data:

Max. silo height: 30,000 mm
Diameter: 1,900 to 5,000 mm
Storage volume: 20 to 500 cbm
Bulk density: up to 20 kN/cbm

Special dimensions on request

Applications:

Plastics industry
Recycling industry
Chemical industry
Pharmaceuticals
Logistics industry
Automotive
Food industry

Optional accessories

Filling pipe
Suction box
Cable protection pipe
Ladder
Emergency slide valve
Silo door
Roof railing
Inspection opening
Rotary paddle switch
Vibrating fork sensor
Silo pilot
Radar sensor
Load cells
Pressure relief valve
Filter
Flashlight & horn
Temperature sensor
Grounding cable
Moisture sensor
Bursting discs
Vibrating hopper
Mixing hopper
VibraPads
Insulation
Platform
Sprinkling system
Anti-honk cone
Axial compensator
Manhole
Screw conveyor
Dry air system
Penthouse
Sampling device
Pinch valve
Feed pan
Suction pot
Sight glass

Your advantages at a glance

Safe and protected storage

Our storage silos protect your material from moisture, contamination and weather influences. This guarantees consistent product quality – whether for pellets, mineral substances or industrial bulk materials.

High stability and durable construction

Eichholz silos are manufactured from high-quality materials and designed for demanding operating conditions. You benefit from robust statics, a long service life and minimal maintenance.

Optimal use of space

Thanks to the vertical design, the floor space is used efficiently. Even large storage quantities can be accommodated in a space-saving manner. This is a decisive advantage when operating space is limited.

Flexibly adaptable to your requirements

Whether volume, discharge system, roof shape or accessories: each storage silo is designed individually. From ventilation and temperature monitoring to special interior linings, Eichholz delivers tailor-made solutions.

Uniform and reliable material flow

Our discharge and conveyor systems ensure that the material is discharged safely and in a controlled manner without bridging or blockages. This increases process reliability and reduces downtime.

Cleanliness & hygiene

Low-dust filling, closed systems and easy-to-clean surfaces support clean processes and make it easier to comply with quality and hygiene standards.

Economical & future-proof

Eichholz storage silos enable cost-optimised storage thanks to fast filling, low losses and durable components. This means you are investing in a sustainable and reliable solution for the future.

Accessories

Filling pipe

Pipeline for material conveying.

Suction box

Connection point for vacuum material conveying. Available in various sizes.

Cable protection pipe

Ensures clean and protected cable routing.

Ladder

For inspection of silos, machines, and installations.

Emergency slide valve

Shut-off device for service operations.

Silo door

Access to the silo skirt.

Roof railing

Fall protection for staff.

Inspection opening

Provides access for service operations.

Rotary paddle switch

Mechanical level limit switch with rotating paddle.

Vibrating fork sensor

Vibration level switch with fork-shaped sensor.

Silo pilot

Electromechanical system for level measurement by lowering a sensing weight.

Radar sensor

Non-contact device for continuous level measurement.

Load cells

Non-contact measuring system based on weight detection.

Pressure relief valve

Ensures pressure equalization in case of overpressure or vacuum in the silo.

Filter

For dedusting conveying air.

Flashlight & horn

Provides visual and acoustic status signaling.

Temperature sensor

Temperature measurement in storage systems.

Grounding cable

Dissipates static charge from the product.

Moisture sensor

Measures moisture content in the product.

Bursting discs

Serve as a predetermined breaking point in case of a dust explosion in the silo.

Vibrating hopper

Discharge assistance through vibration.

Mixing hopper

Used for homogenizing products.

VibraPads

Discharge assistance through vibration and air injection.

Insulation

Protection against weather-related influences.

Platform

Provides access to inspection openings for side-mounted installations.

Sprinkling system

Prevents fire load from the building spreading to the silo.

Anti-honk cone

Use of one or more anti-hup cones reduces friction and vibration on the silo body.

Axial compensator

Used in pipelines to compensate for movement, stress, and vibration.

Manhole

Side access in the silo cylinder.

Screw conveyor

Mechanical conveying device for bulk materials.

Dry air system

Maintains a dry air layer in the headspace and prevents moisture ingress from ambient air.

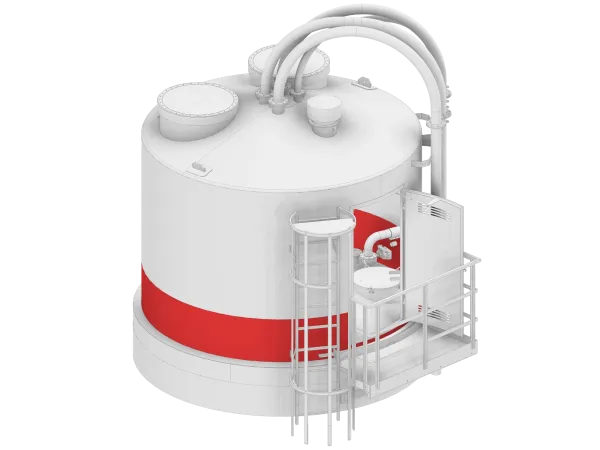

Penthouse

Silo superstructure for protecting installed equipment.

Sampling device

Pinch valve

Shut-off device in the silo filling line. In combination with a pressure sensor, it can stop the filling process if the conveying pressure is too high.

Feed pan

Transfer point between material flow and air flow.

Suction pot

Connection point for vacuum material conveying.

Sight glass

For visual inspection.
