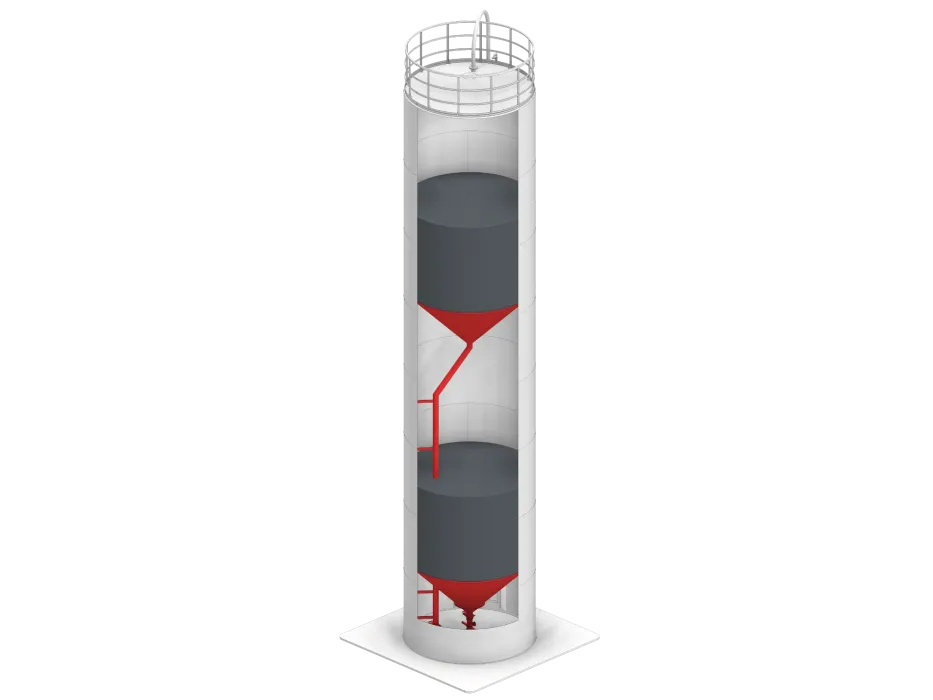

Multi-chamber silo
Multi-chamber silos enable the storage of several bulk materials in a single silo body – cleanly separated, optimally protected and efficiently available at all times. Ideal for businesses that require high flexibility and maximum use of space.
Optional accessories
-
Filling pipe -
Suction box
-
Cable protection pipe
-
Ladder
-
Emergency slide valve
-
Silo door
-
Roof railing
-
Inspection opening
-
Rotary paddle switch
-
Vibrating fork sensor
-
Silo pilot
-
Radar sensor
-
Load cells
-
Pressure relief valve
-
Filter
-
Flashlight & horn
-
Temperature sensor
-
Grounding cable
-
Moisture sensor
-
Bursting discs
-
Vibrating hopper
-
Mixing hopper
-
VibraPads
-
Insulation
-
Platform
-
Sprinkling system
-
Anti-honk cone
-
Axial compensator
-
Manhole
-
Screw conveyor
-
Dry air system
-
Penthouse
-
Sampling device
-
Pinch valve
-
Feed pan
-
Suction pot
-
Sight glass
Your advantages at a glance
Multiple products – one silo
Our multi-chamber silos consist of two or more separate chambers. This allows you to store different materials in a space-saving, compact system – without mixing or loss of quality.
Perfect for businesses with a wide variety of products
Ideal for companies that process many different materials or recipes and need to store them flexibly, clearly and quickly.
Space and cost savings
The compact design eliminates the need for multiple individual silos. This reduces foundation costs, shortens installation times and saves valuable operating space.
Individually configurable
Eichholz multi-chamber silos can be flexibly designed in different chamber sizes to meet your requirements.
High material and process reliability
The clear separation of the chambers and high-quality materials ensure consistent product quality, safe processes and reliable protection against contamination.
Accessories
Filling pipe
Pipeline for material conveying.
Suction box
Connection point for vacuum material conveying. Available in various sizes.
Cable protection pipe
Ensures clean and protected cable routing.
Ladder
For inspection of silos, machines, and installations.
Emergency slide valve
Shut-off device for service operations.
Silo door
Access to the silo skirt.
Roof railing
Fall protection for staff.
Inspection opening
Provides access for service operations.
Rotary paddle switch
Mechanical level limit switch with rotating paddle.
Vibrating fork sensor
Vibration level switch with fork-shaped sensor.
Silo pilot
Electromechanical system for level measurement by lowering a sensing weight.
Radar sensor
Non-contact device for continuous level measurement.
Load cells
Non-contact measuring system based on weight detection.
Pressure relief valve
Ensures pressure equalization in case of overpressure or vacuum in the silo.
Filter
For dedusting conveying air.
Flashlight & horn
Provides visual and acoustic status signaling.
Temperature sensor
Temperature measurement in storage systems.
Grounding cable
Dissipates static charge from the product.
Moisture sensor
Measures moisture content in the product.
Bursting discs
Serve as a predetermined breaking point in case of a dust explosion in the silo.
Vibrating hopper
Discharge assistance through vibration.
Mixing hopper
Used for homogenizing products.
VibraPads
Discharge assistance through vibration and air injection.
Insulation
Protection against weather-related influences.
Platform
Provides access to inspection openings for side-mounted installations.
Sprinkling system
Prevents fire load from the building spreading to the silo.
Anti-honk cone
Use of one or more anti-hup cones reduces friction and vibration on the silo body.
Axial compensator
Used in pipelines to compensate for movement, stress, and vibration.
Manhole
Side access in the silo cylinder.
Screw conveyor
Mechanical conveying device for bulk materials.
Dry air system
Maintains a dry air layer in the headspace and prevents moisture ingress from ambient air.
Penthouse
Silo superstructure for protecting installed equipment.
Sampling device
Pinch valve
Shut-off device in the silo filling line. In combination with a pressure sensor, it can stop the filling process if the conveying pressure is too high.
Feed pan
Transfer point between material flow and air flow.
Suction pot
Connection point for vacuum material conveying.
Sight glass
For visual inspection.
